SmartPoint 510
SmartPoint 510Flexible data collection

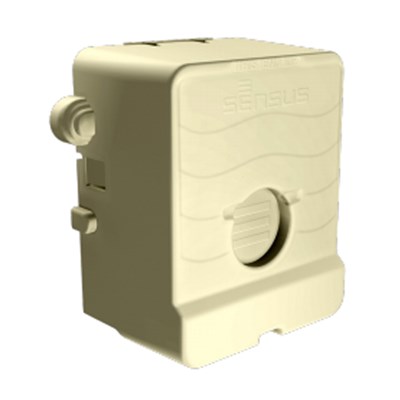

The SmartPoint® 510M Non-Pit Set Module is a radio transceiver that provides water utilities inbound and outbound access to water measurement and ancillary device diagnostics via radio signal. The SmartPoint 510M Module is designed for non-submersible/non-pit installations.
SmartPoint 510 Benefits
- Wall-mounted installation
- Industry-leading two watts broadcast power
- Patented TouchCoupler interfaces with encoded meters via existing two-wire installations
- Connect multiple registers and ancillary devices (such as acoustic monitoring) to a single SmartPoint
- Hourly readings monitor continuous flow, alert to leak conditions
- Extracts usage profiles to inform customers and resolve disputes
- Easy updates to transceiver
- Easy migration to fixed base by simply installing a base station
Specifications
- Wall-mounted installation for non-pit set, non-submersible environments; meter interfaces to the FlexNet® communication network
- Dimensions: 5 9/16" W x 5 1/2" H x 3" D
- Weight: 1.13 lbs.
- Operating temperature: -22 °F to +185 °F (-30 °C to +85 °C)
- Dual- or single-port options
- Compatible with a range of Sensus and non-Sensus encoded metering systems (via TouchCoupler, wired or Nicor)
- 2 watts broadcast power
- Frequency range: 900-950 MHz
- 8000 channels, in 6.25 kHz steps
- Proprietary narrow band modulation
- Non-volatile memory
- Lithium thionyl chloride batteries with hybrid layer capacitor
- 20-year warranty
- FCC CFR 47: Part 24D, Part 101C, Part 15 licensed operation
- Industry Canada (IC) RSS-134, RSS-119
Applications
- Potable Water
